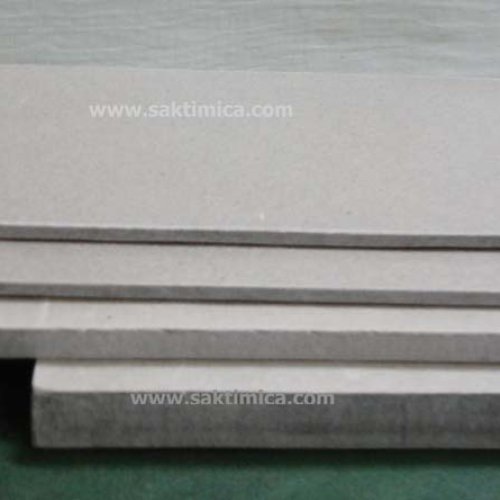

Mica Paper Sheet


Mica Paper Sheet

Mica Paper Sheet consist of muscovite or phlogopite mica paper, impregnated with high heat resistant silicon resin. Several layers of impregnated mica paper are consolidated under heat and high pressure to form rigid plates, in this process, the binder is completely cured. Mica Paper Sheet product is IEC 60371-3-3 compliant. The Mica Paper Sheet maintains their self-supporting characteristics even after being heated.

Appropriate For Manufacturing Heating Elements For

  • Toasters
  • Hairdryers
  • Irons
  • Curlers
  • Strip and band heaters
  • Gaskets
  • Electric furnace


Available Size

  • 600 mm x 1000 mm
  • 1000 MM X 1200 MM


Heating Capacity

  • Muscovite mica paper resist up to 600oC in continuous services. 800oC in intermittent services.
  • Phlogopite mica paper resist up to 700oC in continuous services. 900oC in intermittent services.


Specifications

Item Unit Muscovite Mica paper sheet Phlogopite
Mica Content % 88-90 88-90
Binder Content % 10-12 10-12
Density g/cm2 2.15-2.25 2.15-2.25
Dielectric Strength Kv/mm 16-20 14-18
Volume Resistevity M m 5.0 x 105-1.0x1025 5.0 x 104-1.0x1025
Insulation Resistevity At 500oC M m 1.0 X 102 5.0 x 10
Loss of Mass by % 1.5 1.5
Smoking Test (Max) S 3.0 min.
Water Absorption % 1 3
Flexual Strength N/mm2 180-200 150-170
Compressive Strength N/mm2 400-410 350-370
Delamination(Max) % 3 3

Properties

Nominal Thickness 0.15 0.2, 0.3 0.4 0.5, 0.6 0.7, 0.8 1.00 1 and above
Individual Thickness 0 .04 0.05 0.06 0.07 0.08 0.10 10%
