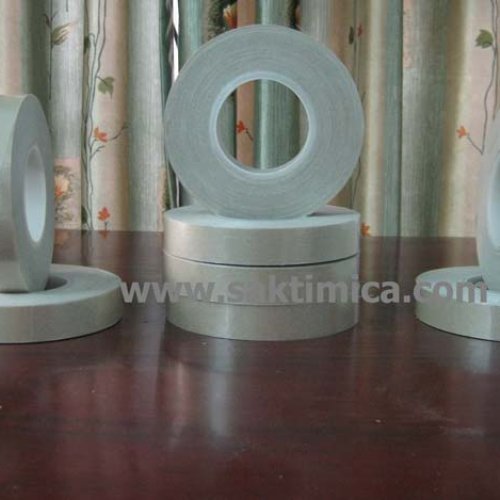

Glass Mica Polyester Tape

Home » Products » Glass Mica Polyester Tape

Our offered Glass Mica Polyester Tapes are widely famous for their worldwide features, which are acknowledged by every client.

Application : Suitable for alternator coils and form the most important part of the insulation system of special Traction Motors. This product is also suitable for both hand and machine taping.

General : Glass Mica Paper Polyester Tape shall be made one side 1.7 mils thickness Fiber Glass Cloth, one-side 0.012mm thickness Polyester films, between 100 gms/sq.mtr. Uniform mica paper bonded with an insulation “F” class varnish, which stand temperature 155°C.The varnish shall be cure to the tack free.

Requirements/Acceptance Criteria :

Material Contents
Particulars	Unit	Specific Requirements
MICA PAPER	gms/m²	100 ± 10
GLASS CLOTH	gms/m²	34 ± 3
POLYESTER FILM	gms/m²	16 ± 2
BINDER	gms/m²	40 ± 3
MASS UNIT AREA	gms/m²	190 ± 6
Mechanical Properties
TENSILE STRENGTH	kg/cm	8 ± 2
Electrical Properties
ELECTRICAL STRENGTH (BDV-Minimum)	kv/mm	30
Size & Tolerances
THICKNESS	mm	0.13 ± 0.02
WIDTH	mm	25 & 20 ± 1
LENGTHS	mtrs	25 & 50 ± 1

Also Available Other Sizes and Thicknesses as Per Buyer’s Demand
