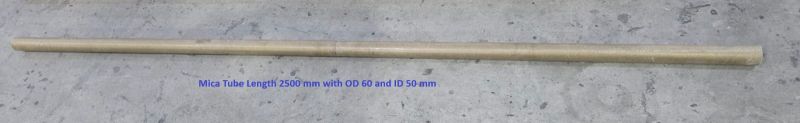

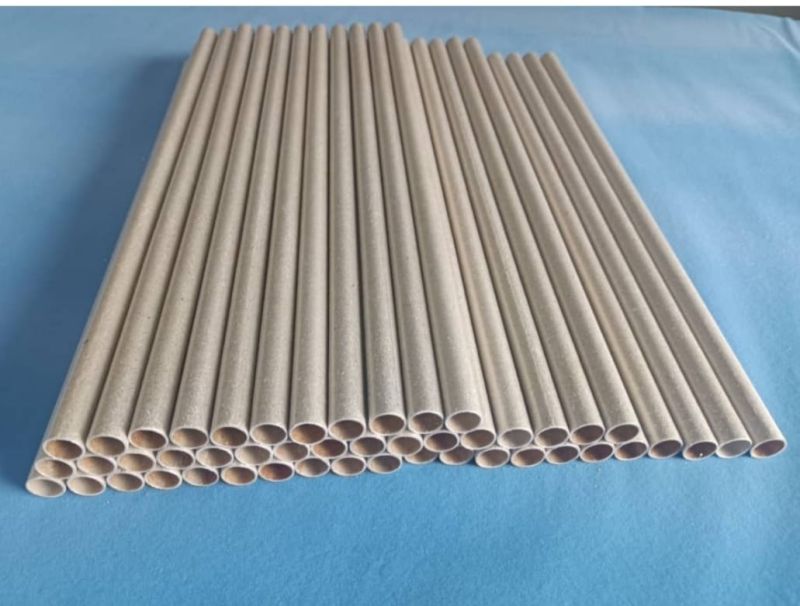

Mica Tube


Mica Tube

Mica Tube Contains Best Quality Muscovite Or Phlogopite Mica Paper Impregnated With High Temperature Silicon Resin As Well As Made By Natural Mica Splitting Bonded By Shellac Resin Under Specific Pressure And Heat, Use In Electrical Arc Furnace, Electric Motors, Electric Appliance, Resistors,Dbr Etc.

AVAILABILITY

Length: 10-1000 mm

ID: Min 6mm

OD: Max 200mm

Thickness: 0.5mm- 20mm


Yes! I am interested


Specifications

CHARACTERISTICS UNIT SAKTI- STM SAKTI - STP
MICA TYPE   MUSCOVITE PHLOGOPHITE
COLOUR   CREAM BROWN
MICA CONTENT % Min 90 90
RESIN CONTENT % Max 10 10
DENSITY Gm/cm³ 1.8-1.9 1.8-1.9
DIELECTRIC STRENGTH @23°C KV/mm >20 >20
TENSILE STRENGTH N/15mm >̲ 140 >̲100
HEAT RESISTING °C >600 >800
EDGE STRENGTH Kg/0.1 mm 1.3 0.9
FLEXURAL STRENGTH N/mm² 200 150
INSULATION RSISTANCE 500°C Ω/cm >1012 >1012
WATER ABSORPTION % < 1 < 1

Data are average results of laboratory tests conducted under standard procedures and are subject to variation, These do not constitute A warranty or representation for which assume legal responsibility.
